Product Description

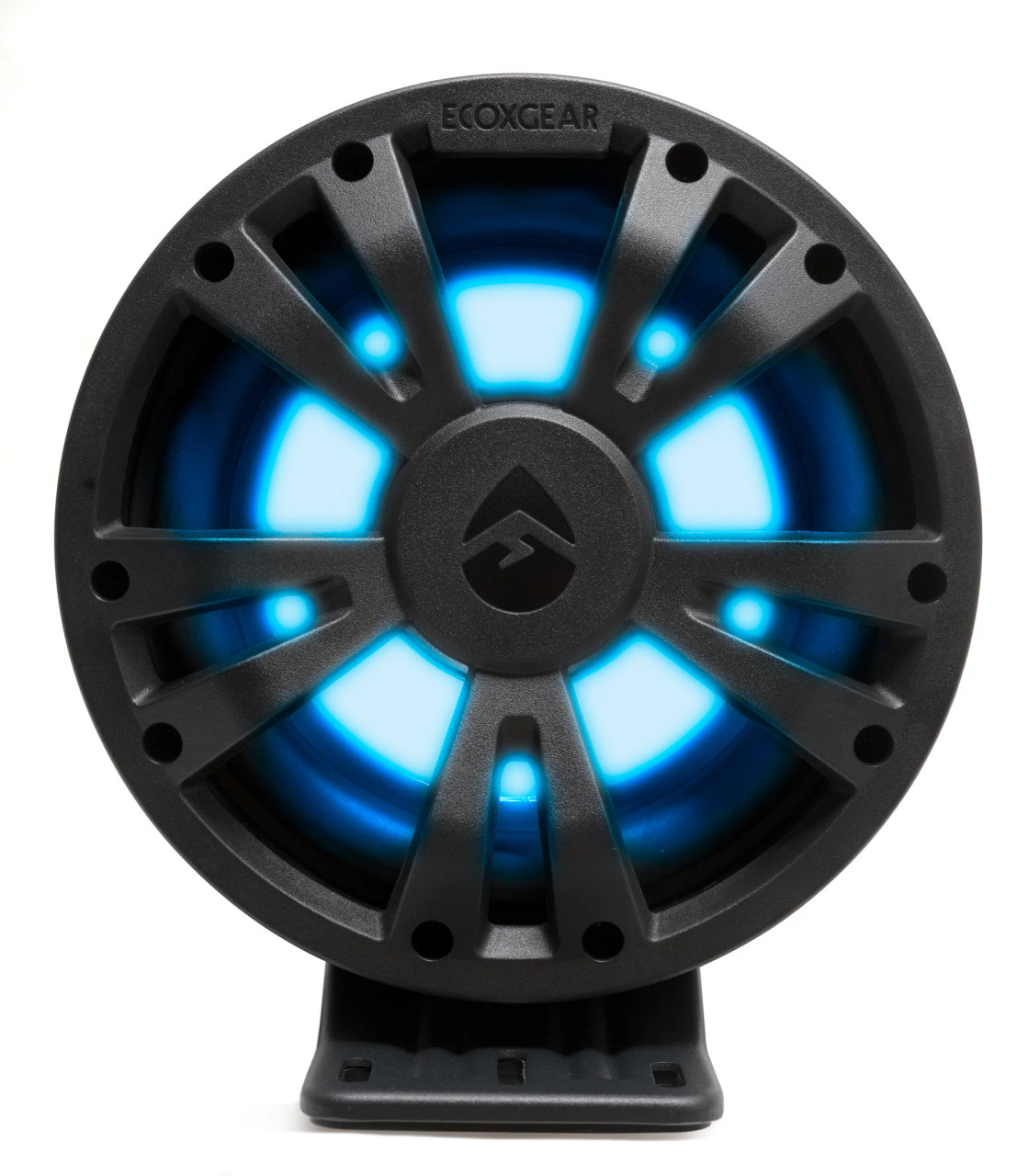

The SoundExtreme ES08 by ECOXGEAR is an 8-inch sealed self-amplified subwoofer that is 100% waterproof and dustproof. Mount it to ATVs/UTVs, golf carts, boats, RVs, even perfect for your garage or workshop.
- 500 Watts - peak output (250 RMS) with variable bass gain and adjustable low pass crossover
- Frequency range from 20 Hz to 275 Hz
- 100% Waterproof (IP66) – rinse it off with a hose; shock resistant, sand, and mud proof
- Wireless Audio Connection – wirelessly connect to ECOXGEAR soundbars/speakers with ECOCAST
- Wired Audio Connection - connect to any soundbar, amplifier, or stereo’s aux out or sub output jacks
- Auto power on modes – remote (blue wire), audio or DC
- Wired Remote Gain Switch - quickly adjust the sub volume on the fly
- Mounting brackets – supports either vertical or horizontal mounting
- Multi-Color LED Backlit Speakers – solid green, red, white, blue, or music sync, fading or off
- What is in the Box – SoundExtreme Subwoofer ES08, user guide, 6.6ft power cable for connecting to vehicle 12V battery, wired remote gain knob, mounting brackets for vertical or horizontal mounting and related hardware; 1 year warranty on parts and labor
500 WATTS PEAK OUTPUT – class D amplifier (250W RMS) powers 1 active 8-inch subwoofer and 1 passive subwoofer to add that kick and punch to your audio system; ECOCAST compatible – wirelessly connect the ES08 Subwoofer to any ECOXGEAR ECOCAST enabled audio product; Built-in waterproof SUB-IN jack to connect to any brand soundbar or stereo amplifier
100% WATERPROOF AND DUSTPROOF – Wash the sub off with a hose, meets IP66 international standards, no worries with mud, sand, or snow
MULTI-COLOR LED SPEAKERS- solid green, red, white, or blue, music sync, fading, or off
GAIN AND FILTER CONTROLS – adjust the volume and frequency range of your sub
MOUNTING BRACKETS – easily mount your sub to your vehicle either vertically or horizontally
REMOTE WIRED GAIN SWITCH – adjust your sub volume remotely
Is the SoundExtreme waterproof & can the SoundExtreme be used over/near water?
YES. The SoundExtreme meets the IPX6 waterproof standard. The SoundExtreme is impervious to rain and can be sprayed with a water hose without issues. Batten down the hatches and play your tunes worry free!
What is IPX6?
The IPX6 Waterproof Standard means that the product is protected against strong water jets. This means that IPX6 products, including the SoundExtreme can withstand use around water.
How does the SoundExtreme Subwoofer connect with other ECOXGEAR SoundExtreme speakers?
The SoundExtreme Subwoofer connects to other SoundExtreme soundbars via EcoCast wireless connectivity. Any ECOXGEAR speaker with ECOCAST is compatible.
Does the SoundExtreme work with other brands of soundbars or Stereo head units?
The SoundExtreme waterproof Subwoofer connects to any other brand of device through the use of the aux in jack.
How far can the SoundExtreme be away from soundbar?
The connectivity for the SoundExtreme Subwoofer is designed and tested to far exceed 30 feet from your Bluetooth device.
The sound is distorted, how can it be improved?
Try lowering the volume control of your connected device or musical instrument. Also, try to reduce the overall volume of the SoundExtreme
What is Peak and RMS output of the SoundExtreme?
500W Peak / 250W RMS
How much current does the SoundExtreme Subwoofer draw?
27 Amps at max volume depending on the type of music being played (running at 12V) It is recommended that you install the ES08 subwoofer with a 30 amp rated 12V step down converter similar to this model https://tinyurl.com/z779kd7t.
The SoundExtreme will not pair With Bluetooth Device?
Make sure that your device is compatible with Bluetooth. Turn off your SoundExtreme and Bluetooth device, then power on and reconnect. Make sure that Bluetooth mode is selected on your SoundExtreme
Volume level is low when playing, how do I make it louder?
Increase the gain level to the maximum and the crossover to 275hz. Additionally, if using the wired remote gain control make sure the gain is maximum.
I am having intermittent issues with the SoundExtreme not connecting correctly to my smartphone via Bluetooth.
The Bluetooth module and microcontroller within the SoundExtreme sound bar has a “boot-up” and “power-down” sequence that the unit goes through when turned on and off respectively. This process takes several seconds (~3-5 seconds) to complete. If the SoundExtreme is on and 12V supply power is cut off from the speaker and then quickly power is returned to the speaker, it may cause the SoundExtreme to get stuck in the “boot-up” mode when you turn the SoundExtreme back on again. The best way to reset the SoundExtreme unit to normal function is to unplug the SoundExtreme from the 12V power supply (i.e. battery) for ~10 seconds and then plug it back in. After this, the SoundExtreme should work properly when turned on again.
Installation Note: If the SoundExtreme is connected to the accessory junction box (busbar) and the power wire of the SoundExtreme is connected to the 12V ACC power post (this receives power only when the key is ON) on the busbar, then you may find that the above discussed “boot-up” issue may occur with your SoundExtreme (because turning the ignition key cuts off and restores power to the ACC power post).
We suggest that you do not hook the SoundExtreme power to ACC power, but to direct 12V battery power. If you are concerned with battery drain issues from having accessories directly attached to the battery, you can add a “kill switch” in-line between the SoundExtreme and the battery so that you can cut power to the SoundExtreme when the vehicle is not in use.
Can the SoundExtreme be set up to automatically power on when my vehicle is turned on?
Yes, you can use the optional bluewire and connect it to a switch or your ignition. Next, Turn the Auto-Turn-On Switch to select “Remote” on the back of the subwoofer.
How do I mount my SoundExtreme on my vehicle?
SoundExtreme includes various mounting brackets and accessories. Utilizing the mounts allows users to mount to vehicle in various ways:
• Use mounting brackets and provided screws to mount to vehicle cross bar by drilling holes in cross bar (or other mounting surface…ie vehicle roof, etc.) and using provided screws to bolt mounting brackets onto cross bar
• Drill hole through cross bar and use provided screws to secure SoundExtreme to cross bar by screwing directly into top mount rail threaded holes on SoundExtreme
• Use mounting brackets and provided worm clamps to secure the SoundExtreme onto a cross bar (without needing to drill holes in cross bar)
• Purchase other after-market accessory mounts that are compatible with the SoundExtreme brackets to mount as you see fit. You can find many compatible mount tube/pipe mount options online and Amazon by searching ‘ Universal cage tube clamp mount’
